(We do not offer credits or returns for this item.)
This fiber cable is priced per foot with a minimum order length of 50ft.
If you would like to inquire about our custom fiber cable options such as longer lengths, custom cut lengths, terminated ends, or pull eyes please call or
Description

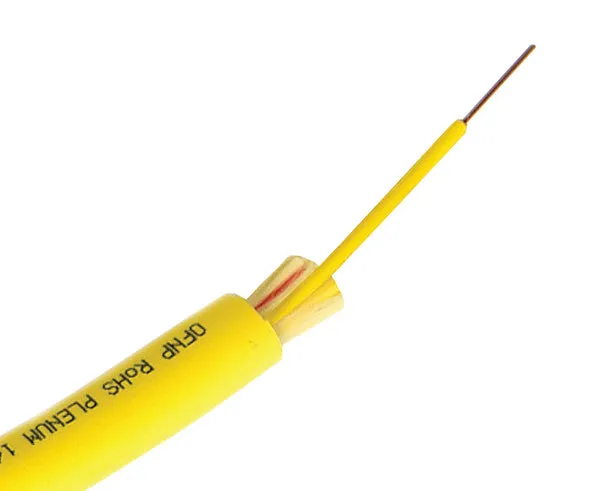

Micro-Distribution Plenum Fiber Optic Cable, Single Mode, 2 Strand, 2mm Subunits
We proudly carry high performance optical fiber products from USA-based Corning Optical. This compact OS2 fiber cable is crafted with precision to provide superior performance in outdoor settings. It utilizes a single tube or optional central strength member and a 2mm PVC plenum rated outer jacket to help limit fire propagation and smoke release. Additionally, aramid yarn, known for its tenacity and heat resistance, encases each subunit for further protection. For reliable, high-performance optical fiber cabling, this micro-distribution cable is the perfect choice.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with and
Features
- 250µm colored bare fibers
- 2mm outer flame retardant PVC jacket
- Smaller outer diameter for tight spaces
- OFNP plenum rated for indoor installation
- Meets National Electric Code (NEC) Article 770
- EU RoHS
- REACH
Applications
- Data centers
- High density installations
Spec Sheet
Single Mode Fiber Information
Single mode fiber cable (Synonyms mono-mode optical fiber, single-mode fiber, single-mode optical waveguide, uni-mode fiber) is a single strand of glass fiber with a diameter of 8.3 to 10 microns that has one mode of transmission. Single mode fiber has a relatively narrow diameter, through which only one mode will propagate typically 1310 or 1550nm wavelengths. Single mode fibers carry higher bandwidth than multimode fiber, but require a light source with a narrow spectral width. Single-mode fiber gives you a higher transmission rate and up to 50 times more distance than multimode. The small core and single light-wave virtually eliminate any distortion that could result from overlapping light pulses, providing the least signal attenuation and the highest transmission speeds of any fiber cable type.
